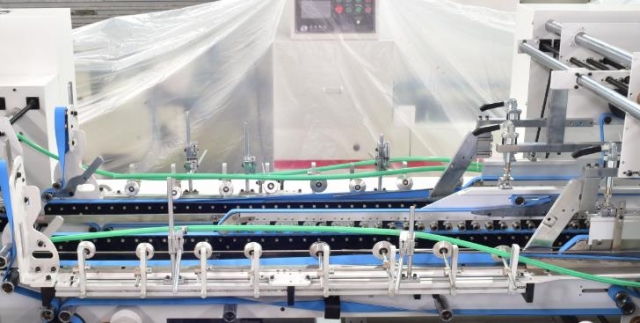

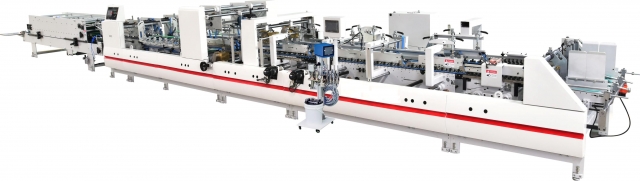

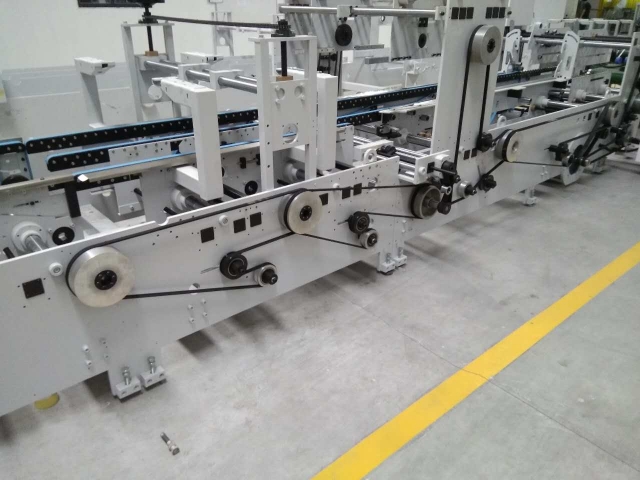

Automatic high speed boxes Folder Gluer (4&6 Corners) Brand :TECNOFLEX Model : GT850 4/6 Origin : CHINA
Specification
Box Type	Paper Size (W x L)
(straight line)	Max 850×700 mm Min?150×80 mm
(lock bottom)	Max 800×650 mm Min?200×80 mm
(6-corner box)	Max 800 mm Min?120 mm
(4-corner box)	Max 800 mm Min?120 mm
Paper weight	corrugated carton, paper cardboard, Flute E, C, F
Max speed	350m/min
Overall dimension	15200 (L) ×2000 (W) ×1500mm(H)
Weight	10200Kg
Power consumption	18KW
Box Type	Side Gluing, Lock Bottom,4&6 points box, double sides boxes, cone-shape boxes ,other boxes which will be added the same moulds.

. FEATURES

? The machine is unit-type structure, which can work in with other function structures.

? The host is controlled by computer with wireless remote device and improved the operations flexibility.

l The machine adopts below outsourcing packed belts and you can change belts easily without tearing down shafts.

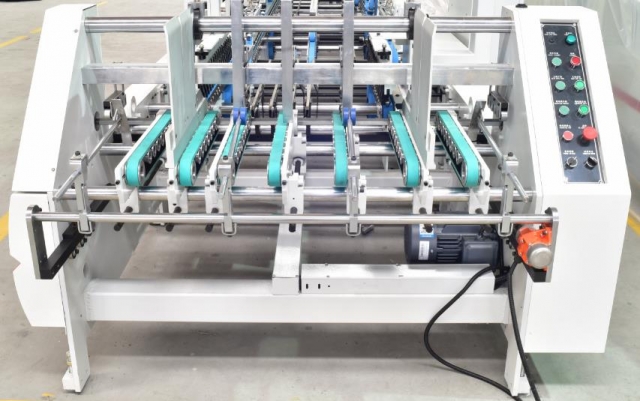

?Feeder, host and delivery systems are controlled by inverters and they can run together or one runs.

?The steel plates are 20mm ,and it makes sure the machine with high speed and no shaking.

?All the adjusting plates are automatic.

l The feeding belt is Japan original Nitta belts.

l The machine has worm-driving system ,which can run more than 15 years.

. Main electrical components and brand

Sensor for 4&6 corner	Taiwan	FATEK
Sensor in output	Taiwan	FATEK
Infinite speed regulator	Japan
Ball bearing with seat	Japan	HRB
PLC	Taiwan	FATEK
touch screen	Taiwan	FATEK
Main motor	Taiwan	TECO
Motor in conveyor	Taiwan	AIMOXIN
motor for adjusting screw bars	Xiamen	JSCC
Power supply switch	France	Schneider

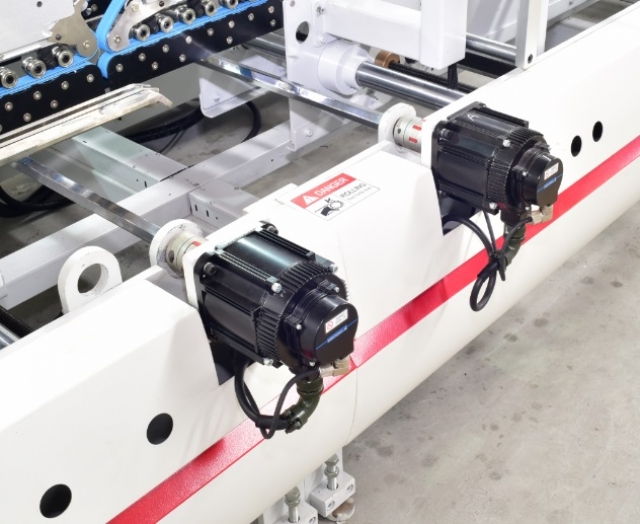

Servo motor	Japan	YASKAWA
Servo driver	China	YASKAWA
Servo encoder	China	YASKAWA
Electrical components	France	Schneider
