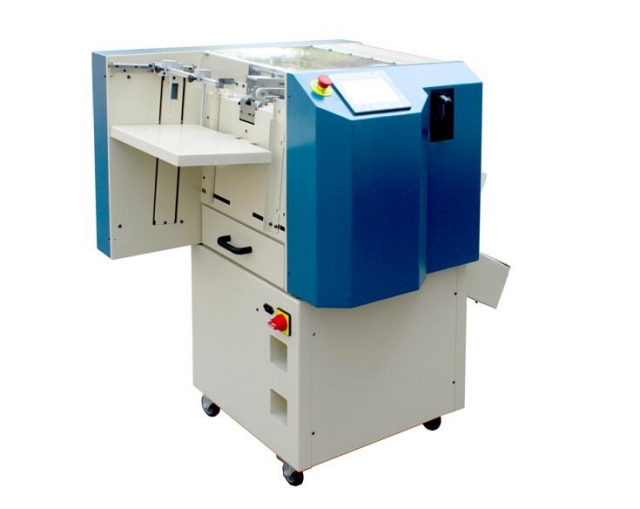

Perforadora GT Automática para Oficina

GT office punching machineis specially used for punching papers in copy center and quick print shop.

The paper feed table moves up each  cycle driven by a stepping motor which accurately controls the amount of

Sheets fed into the machine.The amount of sheets is adjusted using a touch screen. The paper is taken into the

Punching  die by conveyers and then be aligned from three sides at the same time ready for punching. After  punched the paper is taken into the paper collector  in order automatically .

Both the paper size and paper margin can be adjusted. Various  punching dies can be offerred to punch different holes.





1-Punching dies can be changed in 30 seconds by pulling out the die.

2-Paper size can be adjusted automatically by computer

3-Computer diagnostic system replaces manual diagnosis

4-Compact structure, taking less space. Can be moved easily and quickly

5-Can punch PP sheets

6-Suitable for different kinds of binding way



Max. paper size  355x304mm

Min. paper size  140x140mm

Max. Punchingthickness 3-17 pages of 80g paper

Suitable paper 60-230g/?

Max. Speed 70 times/Min.

Paper collecting style  automatic

Power supply AC220/1ph /50Hz/ 0.55kw

Machine dimension?L×W×H? 1250×720×1250mm

Net Weight 280KG
